Filtration



The filter cartridge used in Supakwik products are of the baynette style and clips into the head by rotating a quarter of a turn clockwise.

We supply the choice of two classifications of cartridge, 1/2 and 5 micron.

The ½ or sub-micron cartridge is finer than the 5 micron cartridge. This cartridge complies with NSF Standard 53 - Health Effects performance rating. Generally, because of the Health Effects capabilities of this cartridge, we recommend the ½ micron cartridge in cold water applications such as chilled or ambient filtered water installations.

The 5 micron cartridge has a NSF Standard 42 performance rating and as such is highly effective in the reduction of Taste & Odour aswell as Chlorine. Generally, we recommend this cartridge for use with our boiling water units. By boiling water. significant disinfection is already achieved, therefore we rely on the filtration system to improve the mechanical properties of the water.  The service life of this cartridge is approximately twice that of the ½ micron.

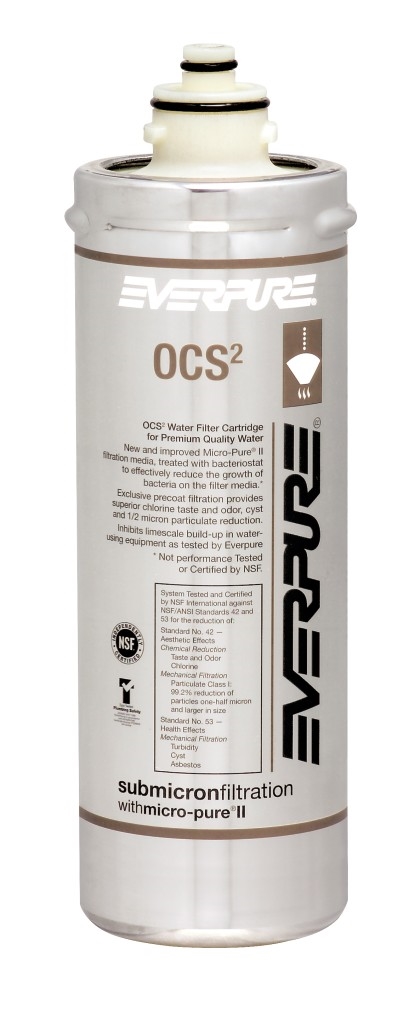

Sub or 1/2 Micron



Application & Capacity:

  • For chilled filtered water & coffee service applications.

  • For low flow, low volume appliances.

  • Capacity: 5675L (1,500 gallons)

Benefits:

  • Provides clear, fresh, premium quality ingredient water for consistently great tasting coffee and beverages.

  • Everpure's unique filter blend using activated carbon reduces chlorine taste and odor and other offensive contaminants Saves energy by reducing scale build-up. Proportioned scale inhibitor feed dramatically prevents limescale from forming in brewing equipment.

  • Engineered to always feed the correct amount of scale inhibitor into each volume of water.

  • Precoat submicron technology reduces dirt and particles as small as 1/2 micron in size.

  • Reduces health contaminants such as asbestos fibers and Cryptosporidium and Giardia cysts.

  • Sanitary cartridge replacement is simple, quick and clean. Internal filter parts are never exposed to handling or contamination.

  • NSF Certified under NSF/ANSI Standards 42 & 53



Download OCS Data Sheet

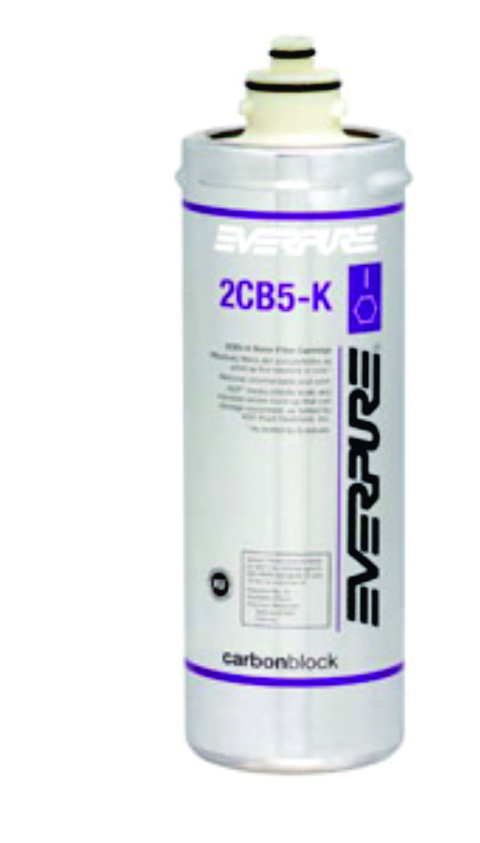

5 Micron Filter Cartridge



Application & Capacity:

  • Ideal for problem water areas

  • For foodservice, vending machines and coffee service applications

  • Capacity 11,350 Litres (3000 gallons)

Benefits:

  • Carbon Block Filter finely polishes water for high quality beverage and food applications.

  • Reduces Chlorine taste & odour and other offensive contaminants that can adversely affect the taste of water and beverages

  • Reduces extra fine dirt and particles as fine as 5 micron in size.

  • Does not remove fluoride.

  • Saves energy by reducing lime scale build-up. Scale can also cause appliance downtime and increase maintenance costs.

  • Features KDF Media which inhibits microbial build-up

  • Sanitary cartridge replacement is simple, quick and clean. Internal filter parts are never exposed to handling or contamination.

  • NSF Certified under NSF Standard 42



Download 2CB5-K Data Sheet



Operational Tips



  • Change cartridges on a regular 6 month preventative maintenance program,

  • Change cartridges when capacity is reached or when pressure falls below 10 psi.

  • Service flow rate must not exceed 2 Litres per minute

  • Always flush the filter cartridge at time of installation and cartridge change
