Supaflush - Urinal Water Saver



A simple yet intelligent, infinitely adjustable Flushing System providing flexibility and control while delivering the best possible installation with maximised  water savings while maintaining hygiene.





  • Australian Made & Owned
  • Robust Rust Free Sensor Housing
  • Easy to Adjust Options
  • Large capacity 9 Volt Battery

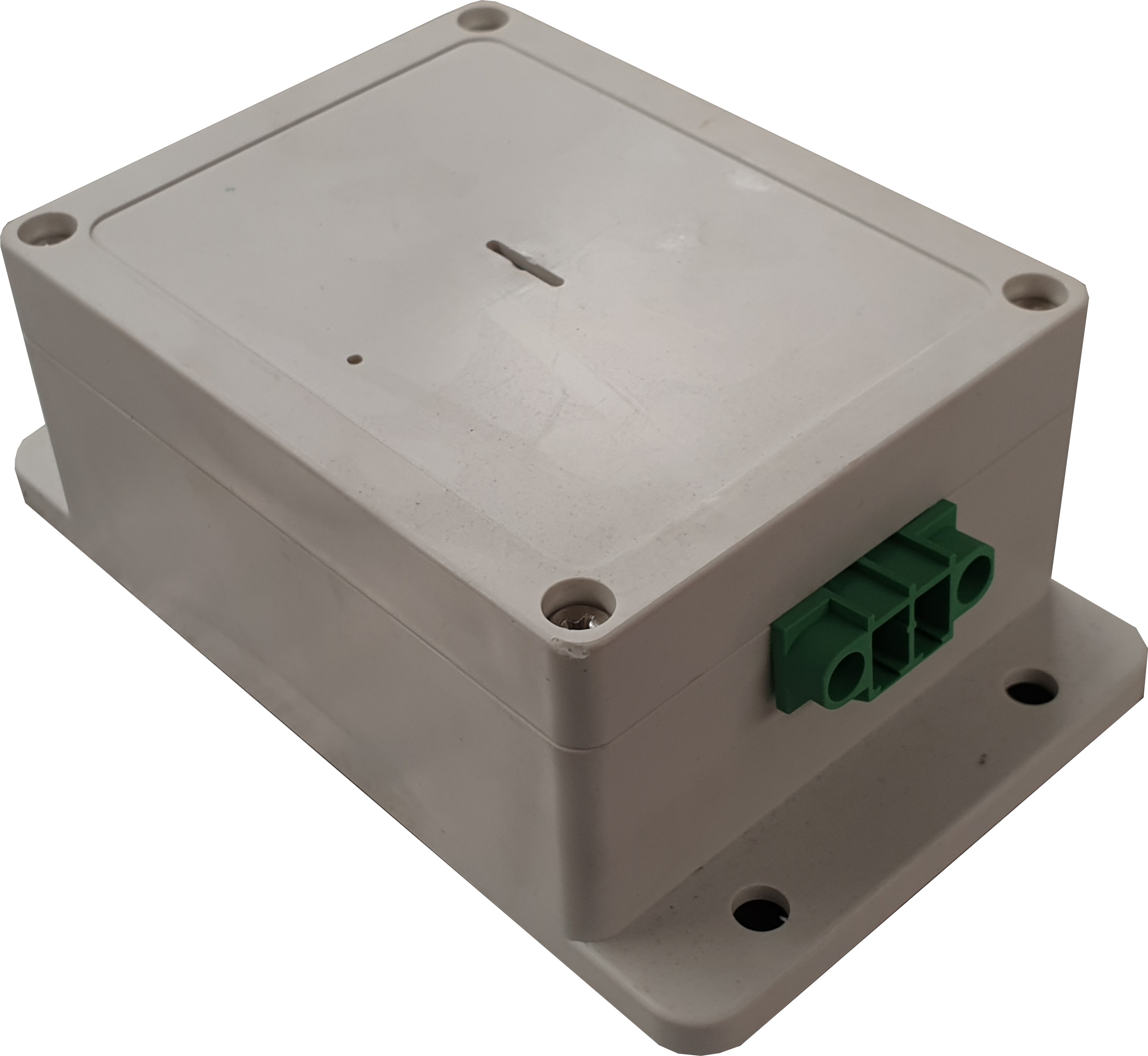

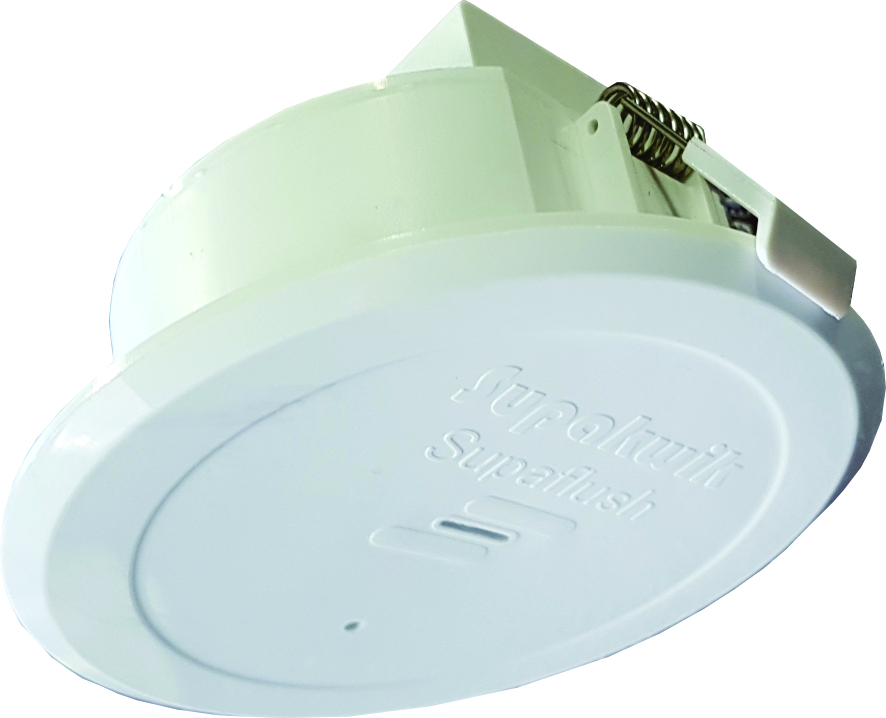

  • Available in Ceiling or Wall Mount







The simple interface offers the installer ease of installation.



The Supalfush offers the Installer full adjustability, thereby delivering a truly customized mode of operation guaranteeing  a quality installation and maximizing water savings.



By simply pressing the  Flush Duration Button, the Installer can, set the flush time they want in real time.











Technical Information



Sensor Type

Passive Infra-red

Battery (included)

9 Volt DC

Enclosure

ABS Plastic

Colour

White

Mounting Hole Diametre

100mm

Memory Retention (battery removed)

10 years (max)

Valve Connector Type

Plug in Connector - Polarized

Pre-Flush Select Option

2 Seconds

Valve Open Flush Time

3 - 300 Seconds

Flush Delay Time

1,2,3,5,10, or 30 Minutes or 1,2,3,4,5, or 6 Hours.

Sanitary Flush Interval

6,12,18, or 24 Hours

Interface

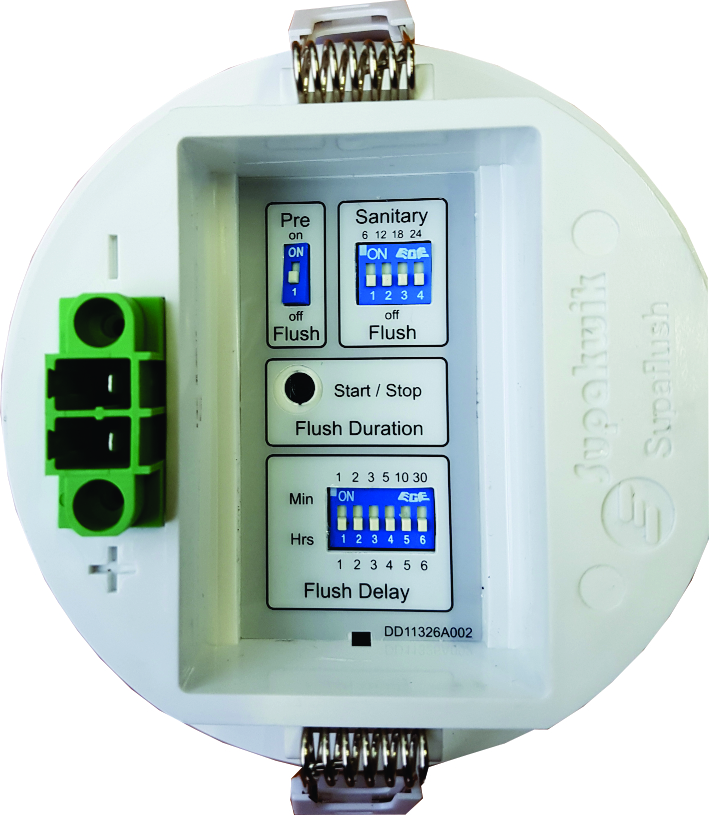

Selectable Dip Switch, and Push Button

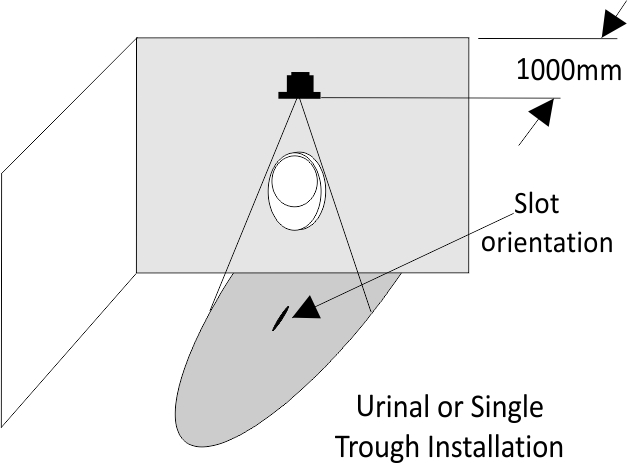

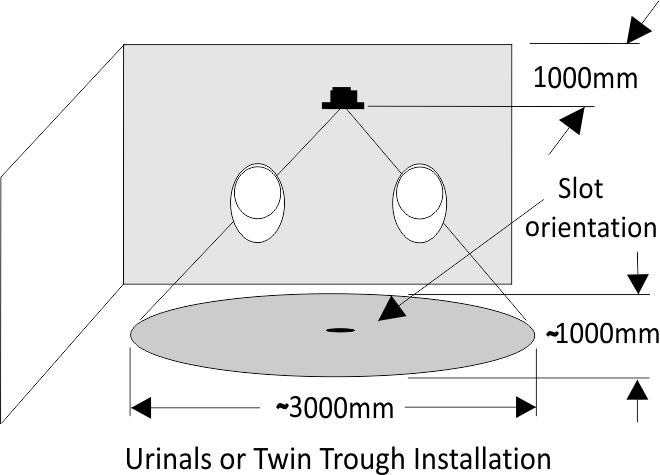

Sensor viewing Diagrams
